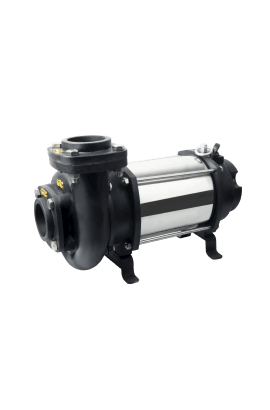

Openwell · Submersible Pumps
Power your demanding needs with the Openwell V7/V9 Submersible Pumps. Ideal for deep wells, industrial applications and more.
KRC Pumps manufactures this Openwell for efficient water movement in homes, farms, construction sites, industries, and open or deep well water sources. Designed for long motor life, stable discharge pressure, electricity efficiency, and minimal maintenance, this pump delivers dependable performance even during continuous usage.
Technical Specifications
Below are the key technical parameters, performance capabilities, electrical requirements, cooling mechanism, and usage insights for the Openwell. These metrics help homeowners, agricultural operators, engineers, and industries choose the right pump for smooth water extraction and circulation.
| Head Range | Up to 50 meters for smooth underground water extraction |
|---|---|
| Discharge Flow | Up to 150 liters per minute (LPM) for efficient supply |
| Power Rating | 0.37 to 9.3 kW (0.50 to 12.5 HP) for stable output |
| Voltage Support | 180–250V (1-phase), 350–440V (3-phase) |
| Country of Origin | India |
| Performance Chart Download | Detailed Pump Performance Chart |
Openwell Pump Variants

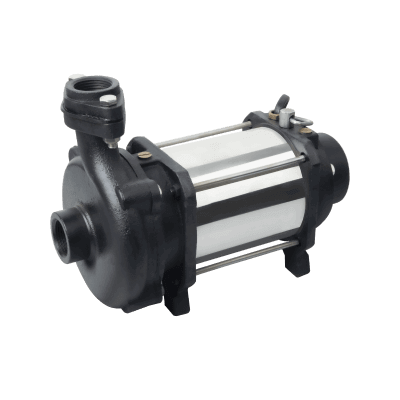

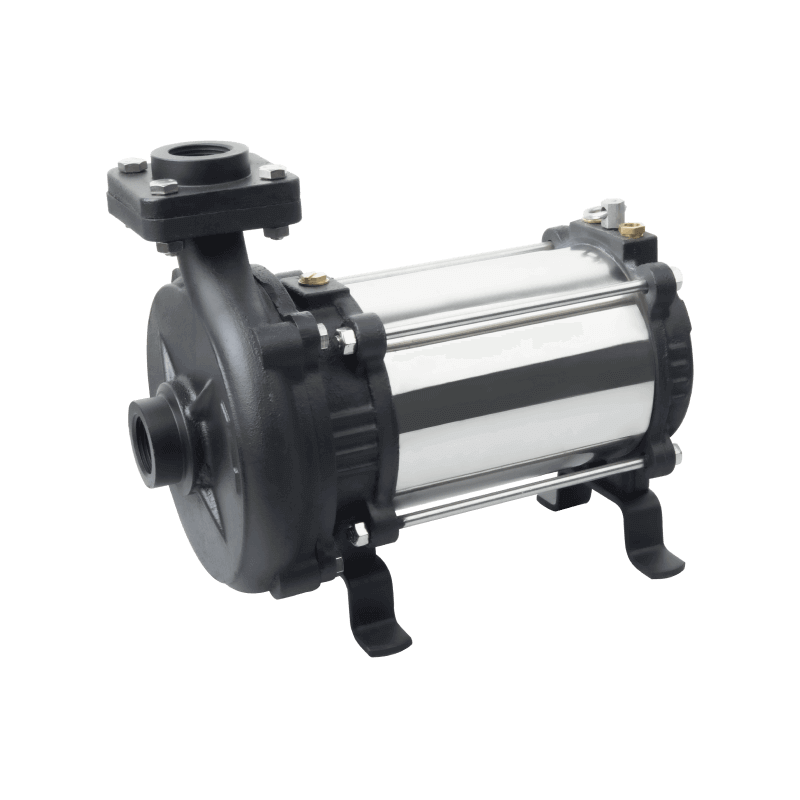

This pump model is also available in different underground extraction capacities including 7-inch and 9-inch high-motor options.
Pump Performance Data Insights
Below performance table shows real discharge capacity, head range, motor horsepower, pipe support size, and stage-wise water output. This helps customers verify pressure stability and flow efficiency before installing based on depth and usage needs.
| Model Name | Motor HP | Stage Count | Discharge Output (LPM) | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 6 | 8 | 10 | 12 | 14 | 16 | 18 | 20 | 22 | 24 | 26 | 28 | |||
| KP-0.8 | 0.8 | 1" X 1" | 200 | 180 | 140 | 130 | 100 | 60 | - | - | - | - | - | - |
| KP-0.75 | 1 | 1" X 1" | 160- | 150- | 130 | 120 | 100 | 90 | 80 | 50 | - | - | - | - |
| KP-1 | 1 | 1" X 1" | - | - | 310 | 280 | 250 | 225 | 185 | 150 | 120 | 110 | - | - |
| KP-1.5 | 1.5 | 1.5" X 1.5" | - | - | 350 | 320 | 300 | 280 | 250 | 325 | 200 | 160 | 100 | - |
| KP-2 | 2 | 2" X 2" | - | - | 360 | 345 | 335 | 330 | 325 | 320 | 300 | 280 | 250 | 150 |
| KP-3 | 3 | 2.5" X 2.5" | - | - | 700 | 650 | 600 | 580 | 550 | 500 | 450 | 350 | 280 | 200 |
| KP-5 | 5 | 2.5" X 2.5" | - | - | 1100 | 1000 | 950 | 900 | 850 | 750 | 500 | 350 | 250 | 150 |
| Model Name | Motor HP | Stage Count | Discharge Output (LPM) | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 12 | 14 | 16 | 18 | 20 | 22 | 24 | 26 | 28 | 30 | 32 | 34 | 36 | 38 | 40 | 42 | 44 | |||
| KP536565 | 3 | 2.5" X 2.5" | 1250 | 1200 | 1150 | 1050 | 900 | 850 | 750 | 500 | - | - | - | - | - | - | - | - | - |
| KP56565 | 5 | 2.5" X 2.5" | 1300 | 1270 | 1220 | 1150 | 1100 | 1000 | 925 | 800 | 680 | 480 | - | - | - | - | - | - | - |
| KP56550 | 5 | 2.5" X 2" | 750 | 700 | 680 | 650 | 640 | 630 | 620 | 560 | 510 | 480 | 420 | 360 | 300 | - | - | - | - |
| KP66565 | 6 | 2.5" X 2.5" | 1500 | 1420 | 1370 | 1300 | 1250 | 1160 | 1100 | 1020 | 900 | 750 | 600 | 300 | - | - | - | - | - |
| KP66550 | 6 | 0.52" X 2" | 800 | 750 | 725 | 700 | 680 | 650 | 600 | 580 | 540 | 520 | 500 | 440 | 350 | - | - | - | - |
| KP757575 | 7.5 | 3" X 3" | 1550 | 1520 | 1450 | 1380 | 1310 | 1250 | 1180 | 1120 | 1040 | 850 | 680 | 550 | 250 | - | - | - | - |
| KP756565 | 7.5 | 2.5" X 2.5" | 1520 | 1490 | 1420 | 1350 | 1280 | 1220 | 1140 | 1060 | 1000 | 800 | 650 | 450 | 150 | - | - | - | - |
| KP756550 | 7.5 | 2.5" X 2" | 850 | 800 | 700 | 680 | 650 | 640 | 630 | 620 | 600 | 560 | 530 | 500 | 480 | 450 | 420 | 360 | 300 |
| KP107575 | 10 | 3" X 3" | 1280 | 1225 | 1200 | 1180 | 1160 | 1140 | 1120 | 1100 | 980 | 960 | 940 | 920 | 900 | 800 | 750 | 650 | 400 |
| KP1257575 | 12.5 | 3" X 3" | 1300 | 1280 | 1260 | 1250 | 1240 | 1220 | 1200 | 1190 | 1180 | 1160 | 1150 | 110 | 1050 | 900 | 800 | 750 | 700 |
